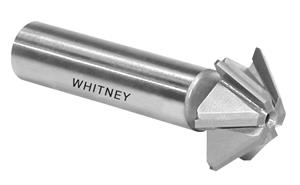

3/4 in. x 60 deg. Uncoated Carbide Tipped Single Angle Chamfer Milling Cutter
- Item Code: CH7560C
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Single Angle Chamfer Milling Cutter - Carbide Tipped
Made in USA
Features
Back To Top- Straight Tooth
- General Purpose Carbide Grade
- Weldon Shank
Tech Specs
Back To Top| UPC | 648672301010 |
|---|---|
| Angle Tolerance | 1/4 deg. |
| Shank Diameter | 3/8" |
| Tooth Configuration | Straight |
| Number of Teeth | 6 |
| Shank Type | Weldon |
| Coating | None |
| Fractional Cutting Diameter | 3/4" |
| Overall Length (Inch) | 2-1/8" |
| Shank Diameter Tolerance | +0", -0.0005" |
| Included Angle | 60 |
| Metric Cutting Diameter | 19.05 mm |
| OD Tolerance | 0.015" |
| Brand | Whitney Tool |
| Style | Single Angle |
| Angle Width | 5/16" |
| Material | Carbide Tipped |
| Width Tolerance | 0.015" |
