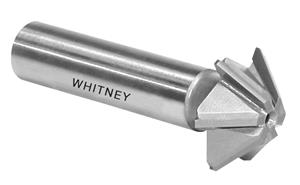

3/4 in. x 60 deg. TiN Coated Carbide Tipped Single Angle Chamfer Milling Cutter

  • Item Code: CH7560CT
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Single Angle Chamfer Milling Cutters - Carbide Tipped

Made in USA

Features Tech Specs

Features

Back To Top
    • Straight Tooth
    • General Purpose Carbide Grade
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672356119
Material Carbide Tipped
Width Tolerance 0.015"
Coating TiN
Angle Tolerance 1/4 deg.
Brand Whitney Tool
Style Single Angle
Number of Teeth 6
Shank Type Weldon
Fractional Cutting Diameter 3/4"
Metric Cutting Diameter 19.05 mm
OD Tolerance 0.015"
Overall Length (Inch) 2-1/8"
Included Angle 60
Shank Diameter 3/8"
Shank Diameter Tolerance +0", -0.0005"
Tooth Configuration Straight
