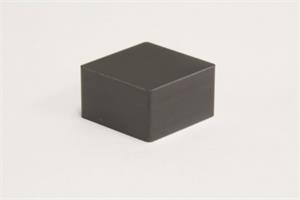

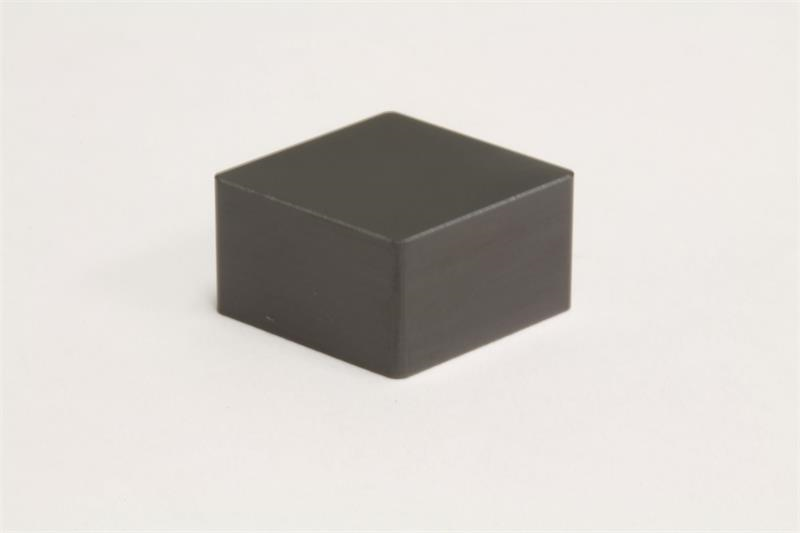

CNGA32.51 NB90S Grade Ceramic Turning Insert

  • Item Code: CNGA431 NB90S
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.

Tech Specs

Back To Top
Insert Style CNGA
Included Angle 80
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Corner Radius 0.0156 Inch
Insert Size 431
Material Ceramic
Shape Diamond
Brand Sumitomo
Product Name Turning Insert
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel
Coating/Finish Ceramic
Insert Series GND
Number of Edges 4
Relief Angle 0 Degree
Grade NB90S
Inscribed Circle 0.5000 Inch
Thickness 0.1875 Inch
