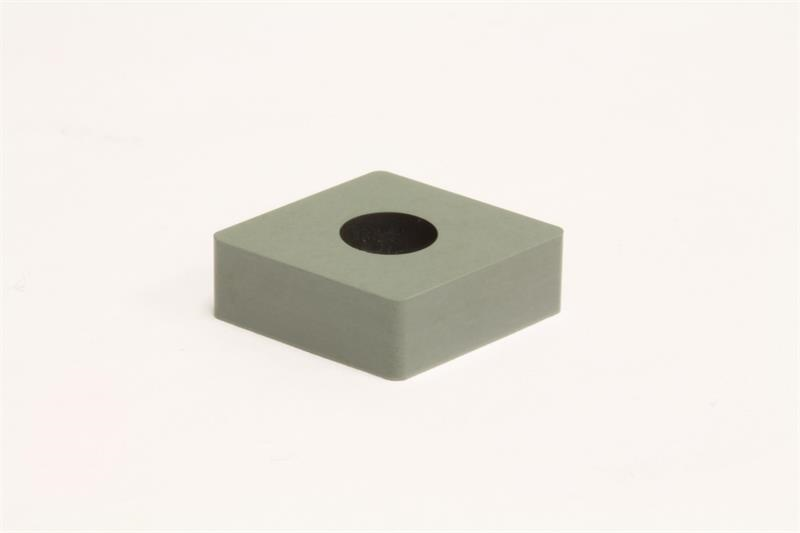

CNGA432 WX2000 Grade Ceramic Turning Insert

  • Item Code: CNGA432 WX2000
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.

Tech Specs

Back To Top
Grade WX2000
Shape Diamond
Coating/Finish Ceramic
Product Name Turning Insert
Thickness 0.1875 Inch
Inscribed Circle 0.5000 Inch
Insert Type Negative
Brand Sumitomo
Corner Radius 0.0313 Inch
Material Ceramic
Number of Edges 4
Insert Series GND
Insert Size 432
Insert Style CNGA
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel
Included Angle 80
