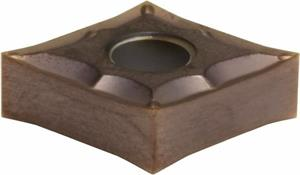

CNGG430.5 ESU AC510U Grade, Carbide Turning Insert

  • Item Code: CNGG430.5ESU AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Thickness 0.1875 Inch
Shape Diamond
Included Angle 80
Inscribed Circle 0.5000 Inch
Insert Type Negative
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Corner Radius 0.0078 Inch
Number of Chipbreaker Double
Number of Edges 4
Brand Sumitomo
Chipbreaker Type ESU
Hole Style Straight
Product Name Turning Insert
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Grade AC510U
Insert Size 430
Insert Style CNGG
Material Solid Carbide
Rake Angle 13 Degree
