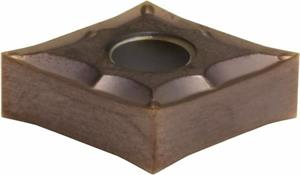

CNGG430 ESU AC510U Grade, Carbide Turning Insert

  • Item Code: CNGG430ESU AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Brand Sumitomo
Product Name Turning Insert
Rake Angle 13 Degree
Thickness 0.1875 Inch
Grade AC510U
Insert Size 430
Insert Style CNGG
Material Solid Carbide
Chipbreaker Type ESU
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Included Angle 80
Insert Type Negative
Number of Chipbreaker Double
Corner Radius 0.0039 Inch
Hole Style Straight
Inscribed Circle 0.5000 Inch
Shape Diamond
Number of Edges 4
