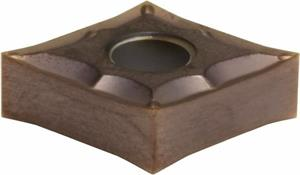

CNGG430 ESU AC520U Grade, Carbide Turning Insert

  • Item Code: CNGG430ESU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 430
Insert Style CNGG
Material Solid Carbide
Number of Chipbreaker Double
Number of Edges 4
Shape Diamond
Mounting Hole Diameter 0.2031 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Included Angle 80
Brand Sumitomo
Chipbreaker Type ESU
Hole Style Straight
Grade AC520U
Product Name Turning Insert
Corner Radius 0.0039 Inch
Inscribed Circle 0.5000 Inch
Insert Type Negative
Thickness 0.1875 Inch
Rake Angle 13 Degree
Relief Angle 0 Degree
