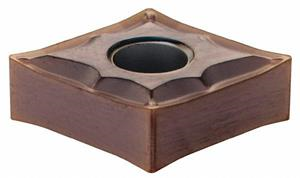

CNGG431 ESU AC520U Grade, Carbide Turning Insert

  • Item Code: CNGG431ESU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Hole Style Straight
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Brand Sumitomo
Product Name Turning Insert
Rake Angle 13 Degree
Thickness 0.1875 Inch
Insert Style CNGG
Material Solid Carbide
Chipbreaker Type ESU
Grade AC520U
Inscribed Circle 0.5000 Inch
Shape Diamond
Corner Radius 0.0156 Inch
Insert Size 431
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Insert Type Negative
Included Angle 80
Number of Chipbreaker Double
