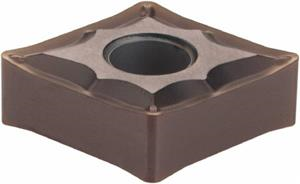

CNGG432 ESU AC520U Grade, Carbide Turning Insert

  • Item Code: CNGG432ESU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Number of Chipbreaker Double
Grade AC520U
Insert Style CNGG
Material Solid Carbide
Brand Sumitomo
Rake Angle 13 Degree
Corner Radius 0.0313 Inch
Included Angle 80
Number of Edges 4
Thickness 0.1875 Inch
Hole Style Straight
Insert Size 432
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Inscribed Circle 0.5000 Inch
Shape Diamond
Chipbreaker Type ESU
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
