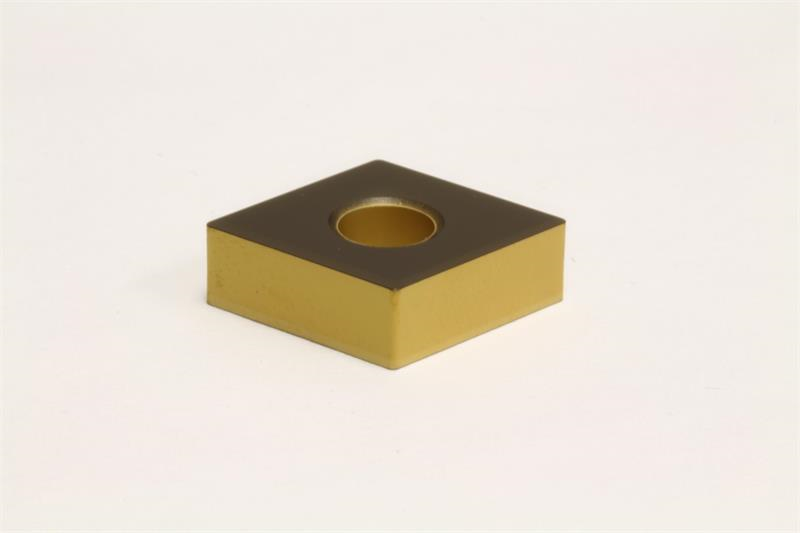

CNMA432 AC700G Grade, Carbide Turning Insert

  • Item Code: CNMA432 AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type No
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Inscribed Circle 0.5000 Inch
Insert Style CNMA
Insert Type Negative
Shape Diamond
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish Coated
Grade AC700G
Material Solid Carbide
Corner Radius 0.0313 Inch
Included Angle 80
Number of Edges 4
Thickness 0.1875 Inch
Brand Sumitomo
Product Name Turning Insert
