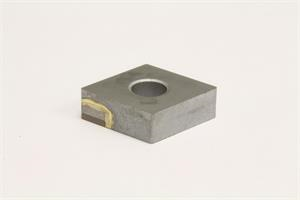

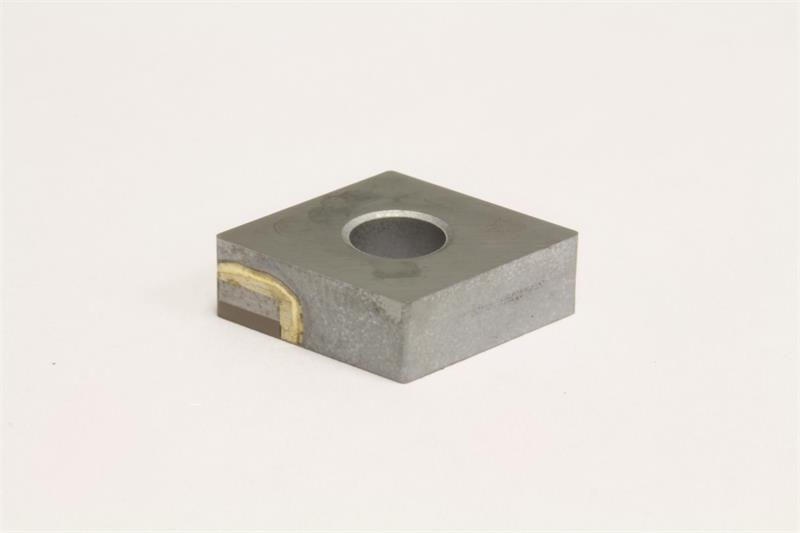

CNMA432 BN2000 Grade, PCBN Style Turning Insert

  • Item Code: CNMA432 BN2000
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Chipbreaker Type Full Tip
Applicable Materials Cast Iron, Exotic Materials
Insert Style CNMA
Max Depth of Cut 0.0200 Inch
Shape Diamond
Thickness 0.1875 Inch
Brand Sumitomo
Coating/Finish None
Included Angle 80
Inscribed Circle 0.5000 Inch
Insert Size 432
Insert Type Negative
Material PCBN
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Corner Radius 0.0313 Inch
Grade BN2000
Number of Edges 4
Product Name Turning Insert
