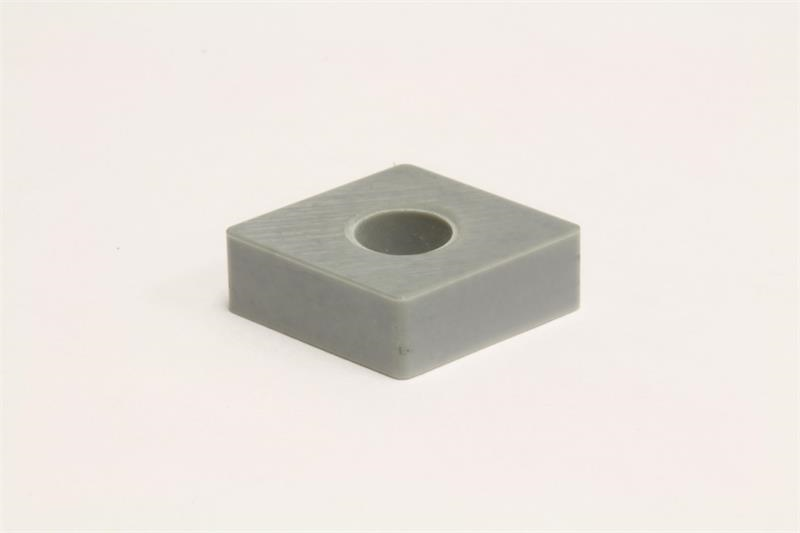

CNMA432 SN2000K Grade, Ceramic Turning Insert

  • Item Code: CNMA432 SN2000K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.

Tech Specs

Back To Top
Material Ceramic
Insert Style CNMA
Shape Diamond
Brand Sumitomo
Inscribed Circle 0.5000 Inch
Insert Series GND
Grade SN2000K
Insert Size 432
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel
Included Angle 80
Thickness 0.1875 Inch
Coating/Finish Ceramic
Corner Radius 0.0313 Inch
Number of Edges 4
Product Name Turning Insert
