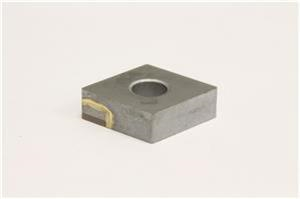

CNMA432 BN250 Grade, PCBN Style Turning Insert

  • Item Code: CNMA432BN250
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Applicable Materials Cast Iron, Exotic Materials
Brand Sumitomo
Chipbreaker Type Full Tip
Insert Style CNMA
Shape Diamond
Material PCBN
Corner Radius 0.0313 Inch
Product Name Turning Insert
Thickness 0.1875 Inch
Coating/Finish None
Grade BN250
Inscribed Circle 0.5000 Inch
Max Depth of Cut 0.0200 Inch
Number of Edges 4
Included Angle 80
Insert Size 432
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
