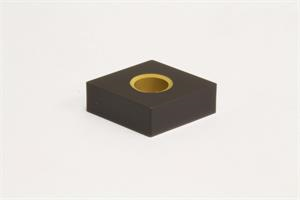

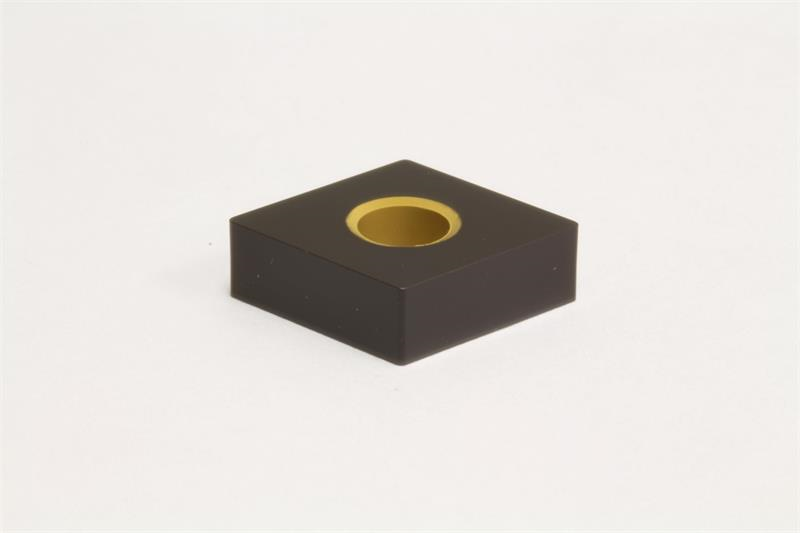

CNMA433 AC405K Grade, Carbide Turning Insert

  • Item Code: CNMA433 AC405K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Brand Sumitomo
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type No
Corner Radius 0.0469 Inch
Grade AC405K
Inscribed Circle 0.5000 Inch
Included Angle 80
Insert Style CNMA
Shape Diamond
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Coating/Finish CVD
Thickness 0.1875 Inch
Number of Edges 4
Product Name Turning Insert
Insert Size 433
Material Solid Carbide
