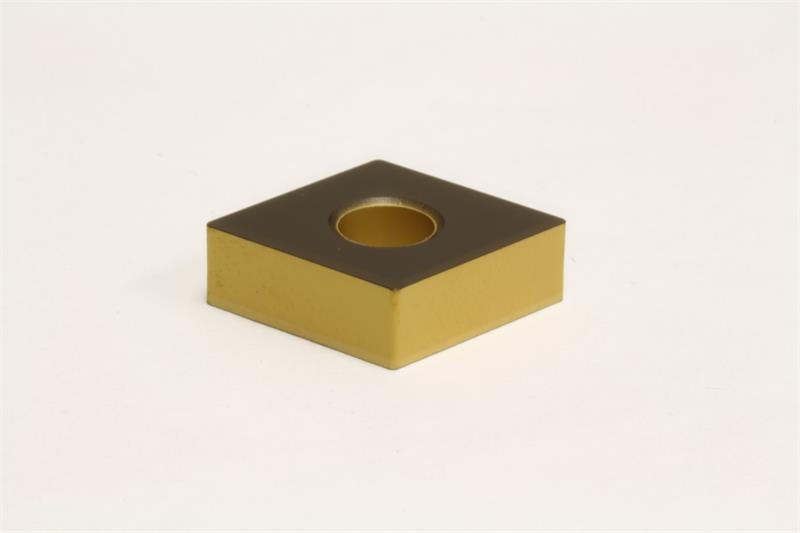

CNMA433 AC700G Grade Carbide Turning Insert

  • Item Code: CNMA433 AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 433
Material Solid Carbide
Mounting Hole Diameter 0.2031 Inch
Number of Edges 4
Relief Angle 0 Degree
Grade AC700G
Included Angle 80
Insert Style CNMA
Product Category Cutting Tools
Shape Diamond
Coating/Finish Coated
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Type Negative
Inscribed Circle 0.5000 Inch
Thickness 0.1875 Inch
Brand Sumitomo
Chipbreaker Type No
Corner Radius 0.0469 Inch
Product Name Turning Insert
