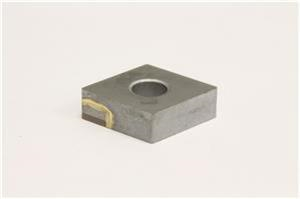

CNMA433 BN250 Grade, PCBN Style Turning Insert

  • Item Code: CNMA433-BN250
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Brand Sumitomo
Material PCBN
Applicable Materials Cast Iron, Exotic Materials
Chipbreaker Type Full Tip
Included Angle 80
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Number of Edges 4
Thickness 0.1875 Inch
Insert Size 433
Coating/Finish None
Grade BN250
Inscribed Circle 0.5000 Inch
Insert Style CNMA
Shape Diamond
Product Name Turning Insert
Corner Radius 0.0469 Inch
Max Depth of Cut 0.0200 Inch
