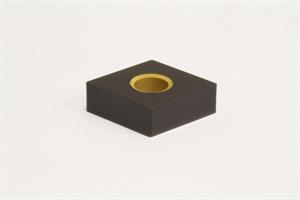

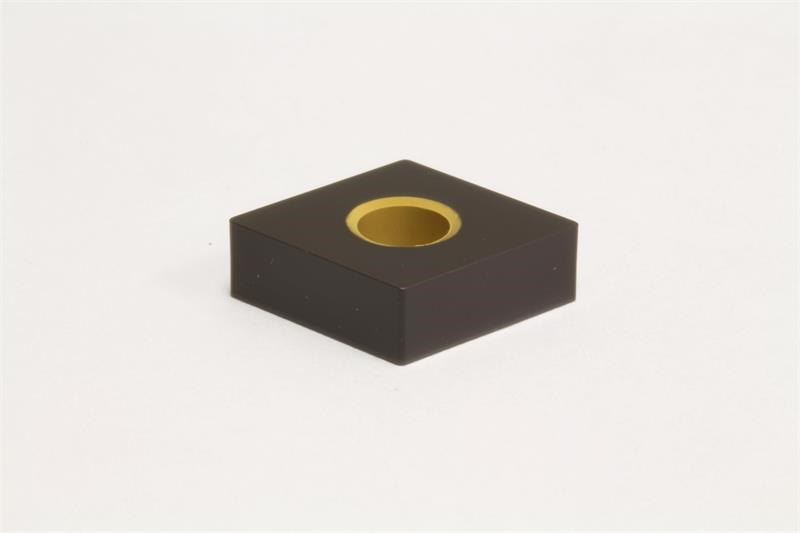

CNMA543 AC420K Grade, Carbide Turning Insert

  • Item Code: CNMA543 AC420K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC420K
Material Solid Carbide
Brand Sumitomo
Insert Size 543
Included Angle 80
Insert Type Negative
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type No
Mounting Hole Diameter 0.2500 Inch
Corner Radius 0.0313 Inch
Number of Edges 4
Thickness 0.2500 Inch
Coating/Finish CVD
Product Name Turning Insert
Inscribed Circle 0.6250 Inch
Insert Style CNMA
Shape Diamond
