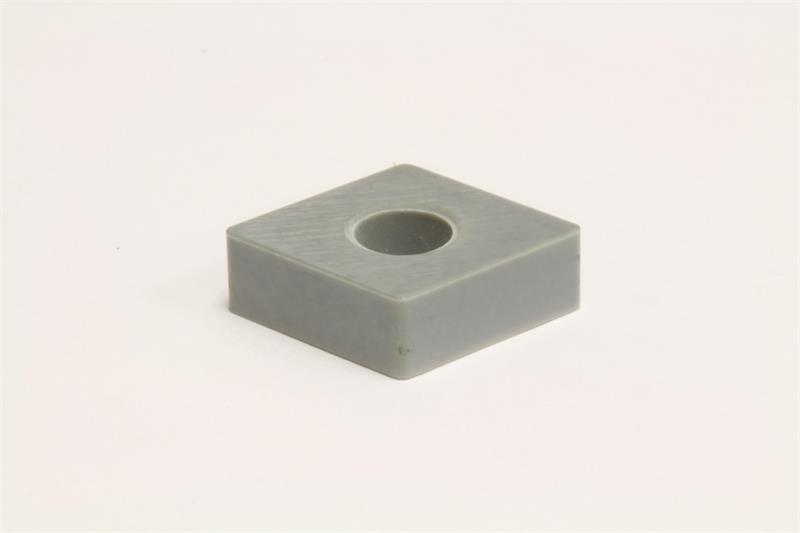

CNMA543 SN2000K Grade, Ceramic Turning Insert

  • Item Code: CNMA543 SN2000K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.

Tech Specs

Back To Top
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel
Coating/Finish Ceramic
Insert Series GND
Relief Angle 0 Degree
Included Angle 80
Number of Edges 4
Brand Sumitomo
Corner Radius 0.0469 Inch
Mounting Hole Diameter 0.2500 Inch
Product Name Turning Insert
Grade SN2000K
Inscribed Circle 0.6250 Inch
Insert Size 543
Insert Type Negative
Material Ceramic
Shape Diamond
Insert Style CNMA
Thickness 0.2500 Inch
