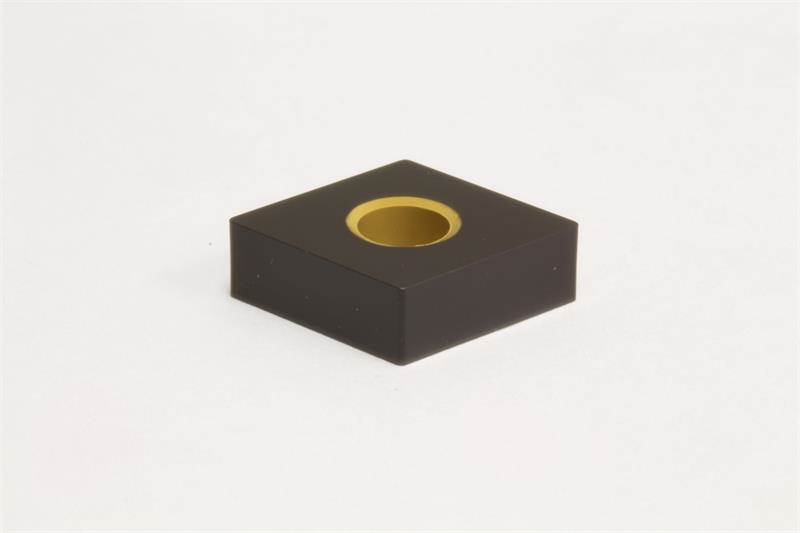

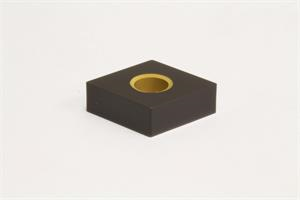

CNMA643 AC405K Grade, Carbide Turning Insert

  • Item Code: CNMA643 AC405K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Mounting Hole Diameter 0.3126 Inch
Insert Style CNMA
Shape Diamond
Brand Sumitomo
Insert Size 643
Included Angle 80
Inscribed Circle 0.7500 Inch
Number of Edges 4
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type No
Corner Radius 0.0469 Inch
Grade AC405K
Material Solid Carbide
Coating/Finish CVD
Thickness 0.2500 Inch
Insert Type Negative
Relief Angle 0 Degree
