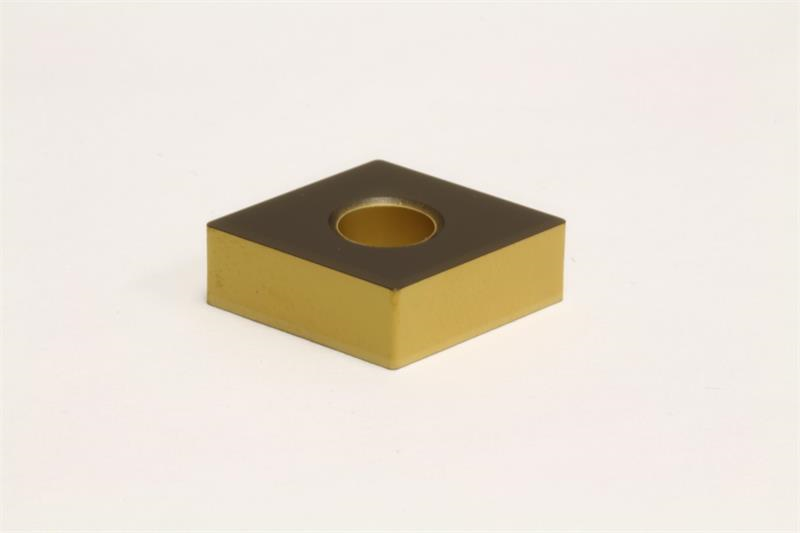

CNMA643 AC700G Grade, Carbide Turning Insert

  • Item Code: CNMA643 AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 643
Inscribed Circle 0.7500 Inch
Product Name Turning Insert
Coating/Finish Coated
Insert Type Negative
Relief Angle 0 Degree
Included Angle 80
Number of Edges 4
Thickness 0.2500 Inch
Brand Sumitomo
Corner Radius 0.0469 Inch
Grade AC700G
Material Solid Carbide
Mounting Hole Diameter 0.3126 Inch
Insert Style CNMA
Shape Diamond
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type No
