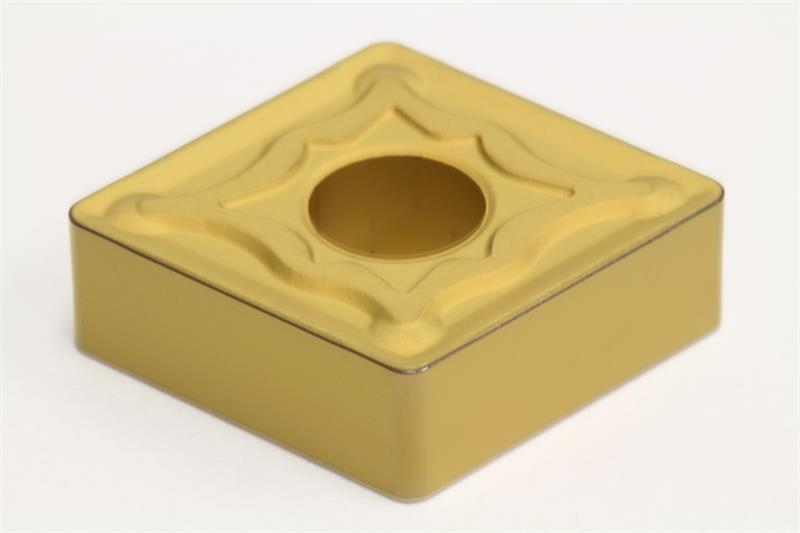

CNMG322 EUX AC830P Grade, Carbide Turning Insert

  • Item Code: CNMG322EUX AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type EUX
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Style CNMG
Shape Diamond
Material Solid Carbide
Coating/Finish CVD
Grade AC830P
Thickness 0.1250 Inch
Corner Radius 0.0313 Inch
Number of Edges 4
Product Name Turning Insert
Rake Angle 0 Degree
Included Angle 80
Insert Size 322
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
