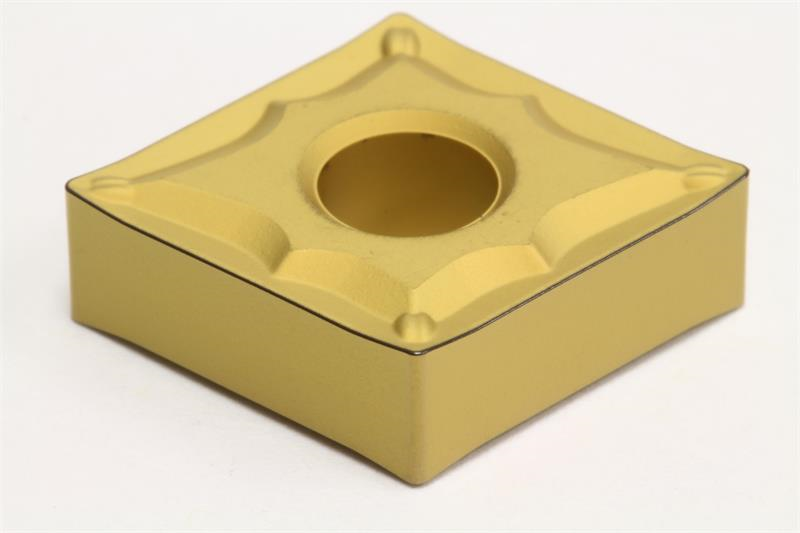

CNMG331 ESU AC820P Grade, Carbide Turning Insert

  • Item Code: CNMG331ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0156 Inch
Chipbreaker Type ESU
Insert Size 331
Material Solid Carbide
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Rake Angle 13 Degree
Number of Edges 4
Thickness 0.1875 Inch
Insert Type Negative
Relief Angle 0 Degree
Included Angle 80
Shape Diamond
Grade AC820P
Insert Style CNMG
Mounting Hole Diameter 0.1500 Inch
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
