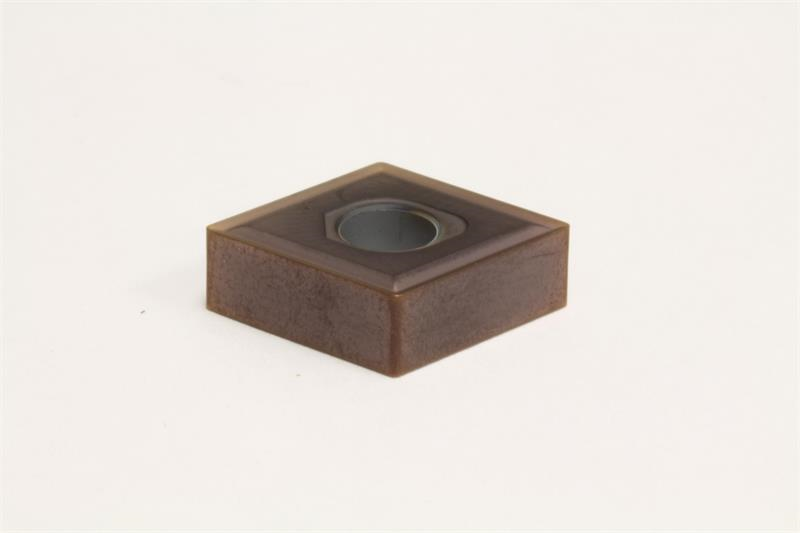

CNMG431 EEX AC510U Grade, Carbide Turning Insert

  • Item Code: CNMG431EEX AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type EEX
Corner Radius 0.0156 Inch
Included Angle 80
Insert Size 431
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Product Name Turning Insert
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Coating/Finish PVD
Grade AC510U
Insert Style CNMG
Rake Angle 16 Degree
Number of Edges 4
Inscribed Circle 0.5000 Inch
Shape Diamond
Thickness 0.1875 Inch
