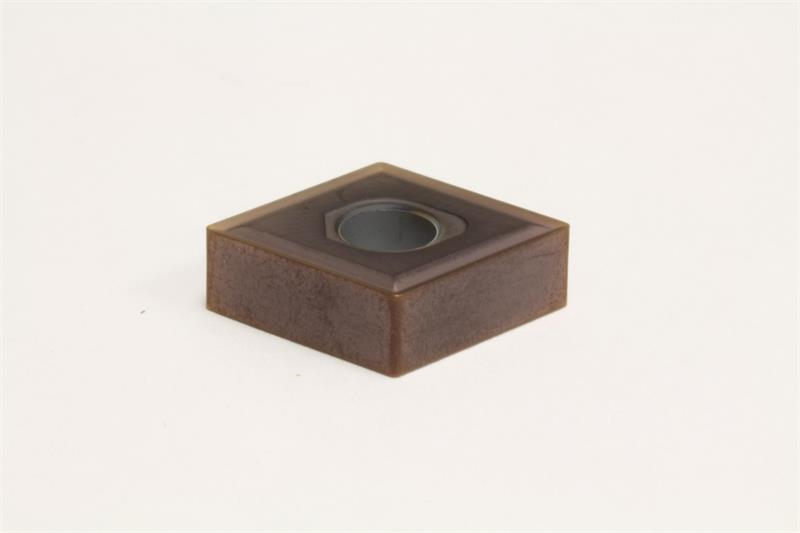

CNMG431 EEX AC520U Grade, Carbide Turning Insert

  • Item Code: CNMG431EEX AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Product Name Turning Insert
Grade AC520U
Thickness 0.1875 Inch
Inscribed Circle 0.5000 Inch
Insert Style CNMG
Insert Type Negative
Rake Angle 16 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Brand Sumitomo
Chipbreaker Type EEX
Included Angle 80
Material Solid Carbide
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Corner Radius 0.0156 Inch
Insert Size 431
Number of Edges 4
Shape Diamond
