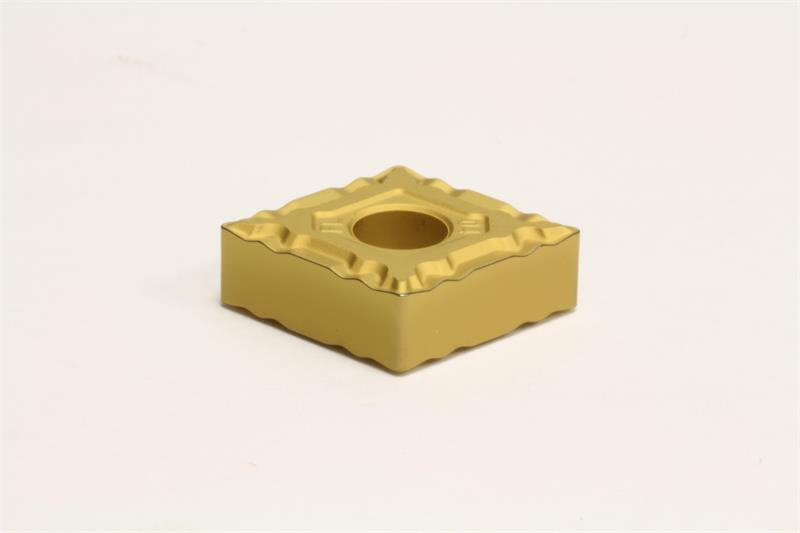

CNMG431 EFL AC820P Grade, Carbide Turning Insert

  • Item Code: CNMG431EFL AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish CVD
Grade AC820P
Number of Edges 4
Insert Type Negative
Material Solid Carbide
Product Name Turning Insert
Thickness 0.1875 Inch
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Chipbreaker Type EFL
Inscribed Circle 0.5000 Inch
Shape Diamond
Corner Radius 0.0156 Inch
Insert Size 431
Rake Angle 10 Degree
Brand Sumitomo
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Included Angle 80
Insert Style CNMG
