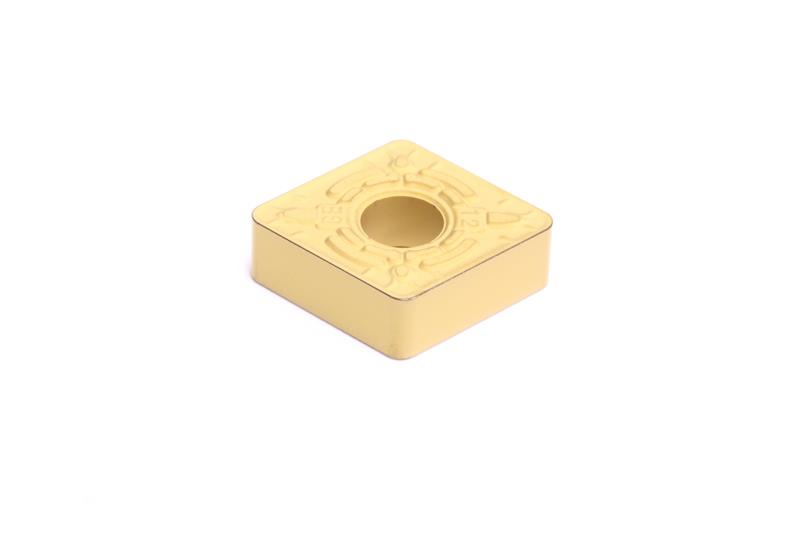

CNMG431 EGE AC810P Grade, Carbide Turning Insert

  • Item Code: CNMG431EGE AC810P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Product Name Turning Insert
Thickness 0.1875 Inch
Mounting Hole Diameter 0.2031 Inch
Rake Angle 3 Degree
Relief Angle 0 Degree
Grade AC810P
Insert Style CNMG
Number of Edges 4
Corner Radius 0.0156 Inch
Insert Size 431
Insert Type Negative
Material Solid Carbide
Inscribed Circle 0.5000 Inch
Shape Diamond
Brand Sumitomo
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type EGE
Coating/Finish CVD
Included Angle 80
