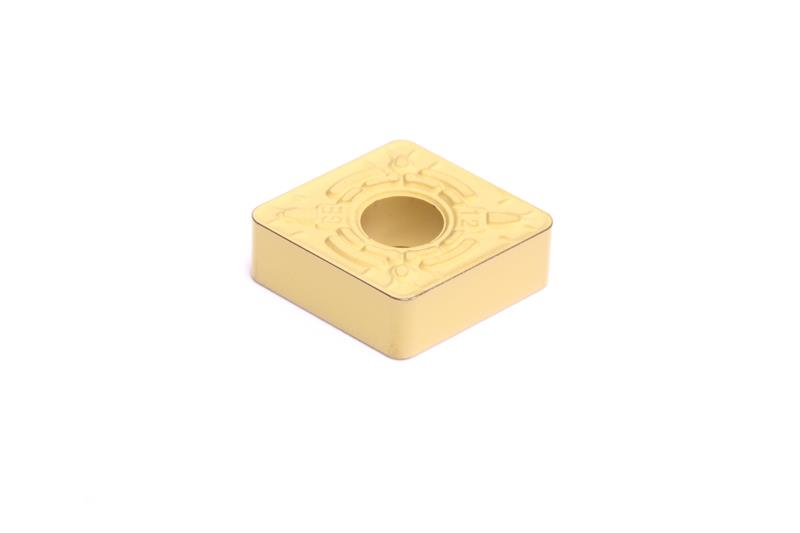

CNMG431 EGE AC820P Grade, Carbide Turning Insert

  • Item Code: CNMG431EGE AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Product Name Turning Insert
Thickness 0.1875 Inch
Chipbreaker Type EGE
Corner Radius 0.0156 Inch
Insert Size 431
Shape Diamond
Grade AC820P
Inscribed Circle 0.5000 Inch
Insert Style CNMG
Insert Type Negative
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Number of Edges 4
Relief Angle 0 Degree
Mounting Hole Diameter 0.2031 Inch
Brand Sumitomo
Included Angle 80
Material Solid Carbide
Rake Angle 3 Degree
