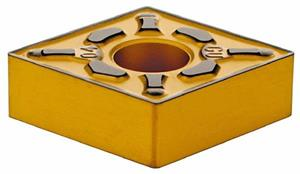

CNMG431 EGU AC630M Grade, Carbide Turning Insert

  • Item Code: CNMG431EGU AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Inscribed Circle 0.5000 Inch
Insert Style CNMG
Corner Radius 0.0156 Inch
Insert Size 431
Shape Diamond
Product Name Turning Insert
Thickness 0.1875 Inch
Number of Edges 4
Chipbreaker Type EGU
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Coating/Finish CVD
Grade AC630M
Included Angle 80
Rake Angle 7 Degree
Relief Angle 0 Degree
Material Solid Carbide
