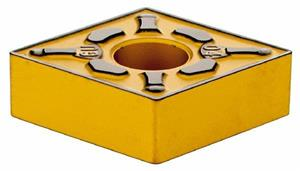

CNMG431 EGU AC700G Grade, Carbide Turning Insert

  • Item Code: CNMG431EGU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish Coated
Included Angle 80
Inscribed Circle 0.5000 Inch
Insert Style CNMG
Insert Type Negative
Number of Edges 4
Corner Radius 0.0156 Inch
Insert Size 431
Grade AC700G
Shape Diamond
Chipbreaker Type EGU
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Brand Sumitomo
Product Name Turning Insert
Material Solid Carbide
Rake Angle 7 Degree
Thickness 0.1875 Inch
