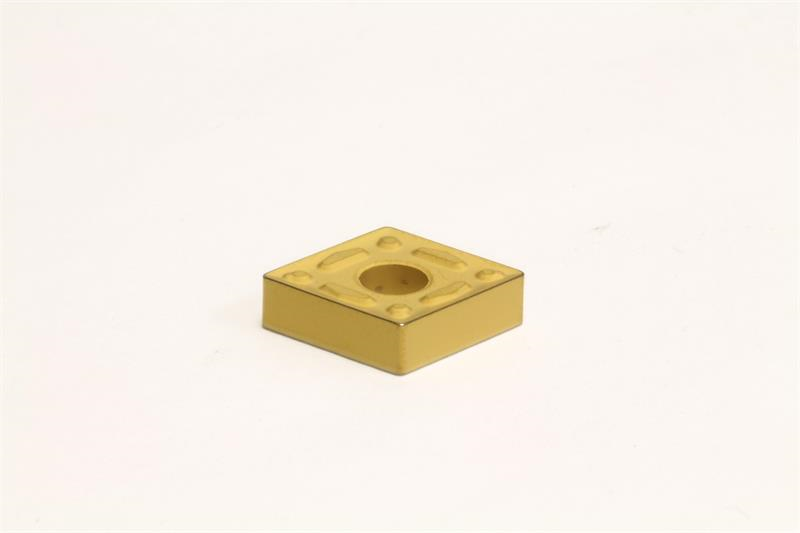

CNMG431 ENG AC830P Grade, Carbide Turning Insert

  • Item Code: CNMG431ENG-AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Product Name Turning Insert
Rake Angle 4 Degree
Thickness 0.1875 Inch
Shape Diamond
Coating/Finish CVD
Grade AC830P
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.5000 Inch
Insert Style CNMG
Brand Sumitomo
Corner Radius 0.0156 Inch
Included Angle 80
Insert Size 431
Chipbreaker Type ENG
Material Solid Carbide
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
