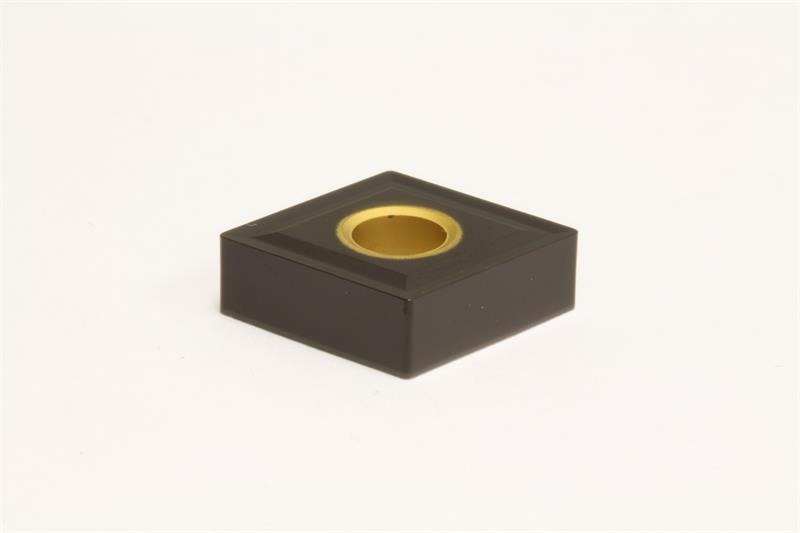

CNMG431 ENZ AC420K Grade, Carbide Turning Insert

  • Item Code: CNMG431ENZ AC420K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish CVD
Material Solid Carbide
Grade AC420K
Included Angle 80
Insert Style CNMG
Chipbreaker Type ENZ
Mounting Hole Diameter 0.2031 Inch
Rake Angle 4 Degree
Relief Angle 0 Degree
Inscribed Circle 0.5000 Inch
Shape Diamond
Brand Sumitomo
Product Name Turning Insert
Thickness 0.1875 Inch
Corner Radius 0.0156 Inch
Insert Size 431
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Type Negative
