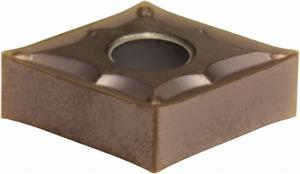

CNMG431 ESU AC510U Grade, Carbide Turning Insert

  • Item Code: CNMG431ESU AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0156 Inch
Grade AC510U
Shape Diamond
Insert Size 431
Brand Sumitomo
Rake Angle 13 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Inscribed Circle 0.5000 Inch
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Included Angle 80
Insert Style CNMG
Number of Edges 4
Product Name Turning Insert
Thickness 0.1875 Inch
Chipbreaker Type ESU
Material Solid Carbide
