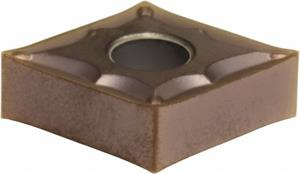

CNMG431 ESU AC520U Grade, Carbide Turning Insert

  • Item Code: CNMG431ESU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC520U
Material Solid Carbide
Corner Radius 0.0156 Inch
Insert Size 431
Shape Diamond
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Coating/Finish PVD
Rake Angle 13 Degree
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Chipbreaker Type ESU
Inscribed Circle 0.5000 Inch
Thickness 0.1875 Inch
Number of Edges 4
Relief Angle 0 Degree
Included Angle 80
Insert Style CNMG
Product Name Turning Insert
