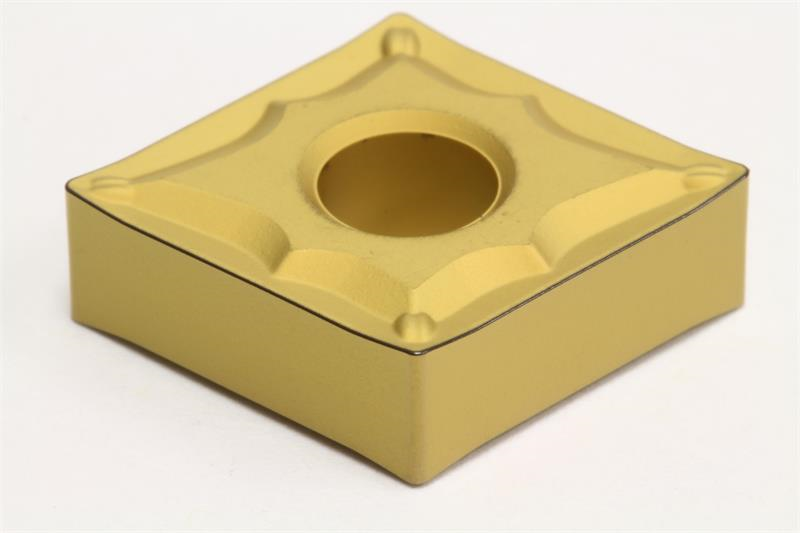

CNMG431 ESU AC700G Grade, Carbide Turning Insert

  • Item Code: CNMG431ESU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0156 Inch
Grade AC700G
Inscribed Circle 0.5000 Inch
Shape Diamond
Included Angle 80
Insert Style CNMG
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Type Negative
Chipbreaker Type ESU
Material Solid Carbide
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Brand Sumitomo
Product Name Turning Insert
Rake Angle 13 Degree
Thickness 0.1875 Inch
Coating/Finish Coated
Insert Size 431
Number of Edges 4
