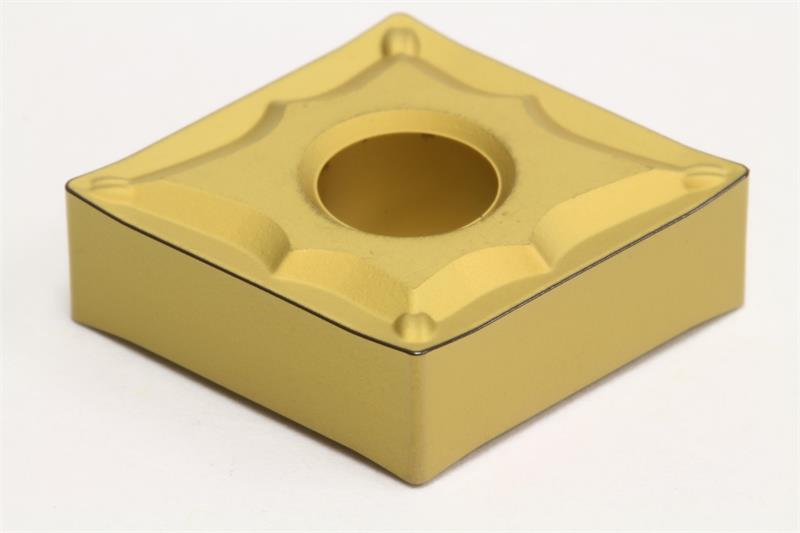

CNMG431 ESU AC810P Grade, Carbide Turning Insert

  • Item Code: CNMG431ESU AC810P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Material Solid Carbide
Coating/Finish CVD
Corner Radius 0.0156 Inch
Insert Size 431
Number of Edges 4
Shape Diamond
Included Angle 80
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Chipbreaker Type ESU
Grade AC810P
Product Name Turning Insert
Inscribed Circle 0.5000 Inch
Insert Type Negative
Thickness 0.1875 Inch
Insert Style CNMG
Rake Angle 13 Degree
