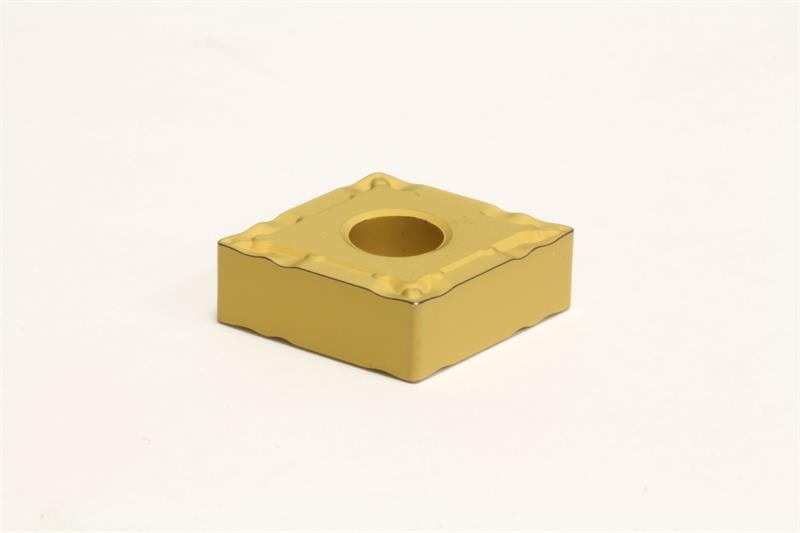

CNMG431 ESX AC700G Grade, Carbide Turning Insert

  • Item Code: CNMG431ESX AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0156 Inch
Included Angle 80
Insert Size 431
Chipbreaker Type ESX
Grade AC700G
Material Solid Carbide
Coating/Finish Coated
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Rake Angle 3 Degree
Relief Angle 0 Degree
Brand Sumitomo
Number of Edges 4
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Style CNMG
Product Name Turning Insert
Inscribed Circle 0.5000 Inch
Shape Diamond
