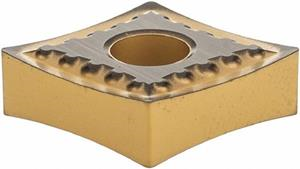

CNMG431 EUP AC630M Grade, Carbide Turning Insert

  • Item Code: CNMG431EUP AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Number of Edges 4
Inscribed Circle 0.5000 Inch
Insert Style CNMG
Insert Type Negative
Thickness 0.1875 Inch
Corner Radius 0.0156 Inch
Grade AC630M
Insert Size 431
Rake Angle 10 Degree
Shape Diamond
Brand Sumitomo
Product Name Turning Insert
Included Angle 80
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Chipbreaker Type EUP
Material Solid Carbide
