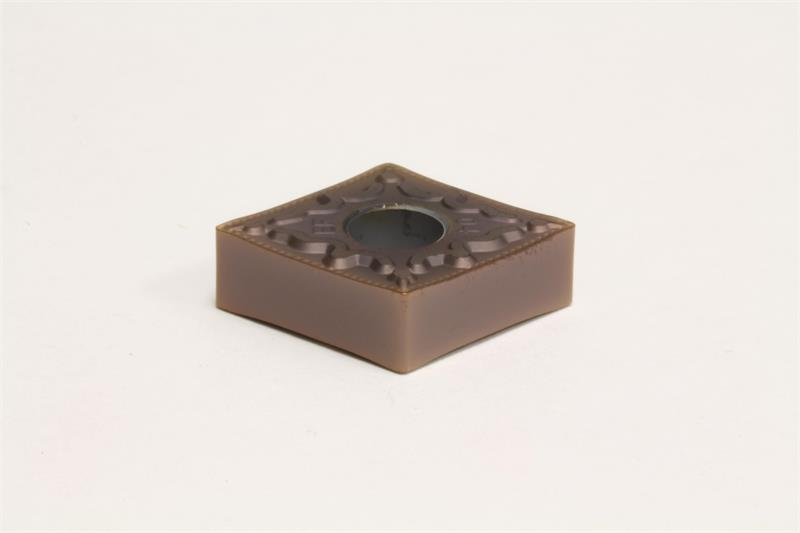

CNMG432 EEF AC520U Grade, Carbide Turning Insert

  • Item Code: CNMG432EEF AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC520U
Product Name Turning Insert
Thickness 0.1875 Inch
Corner Radius 0.0313 Inch
Shape Diamond
Inscribed Circle 0.5000 Inch
Insert Style CNMG
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Number of Edges 4
Brand Sumitomo
Chipbreaker Type EEF
Material Solid Carbide
Included Angle 80
Rake Angle 0 Degree
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Insert Type Negative
Relief Angle 0 Degree
