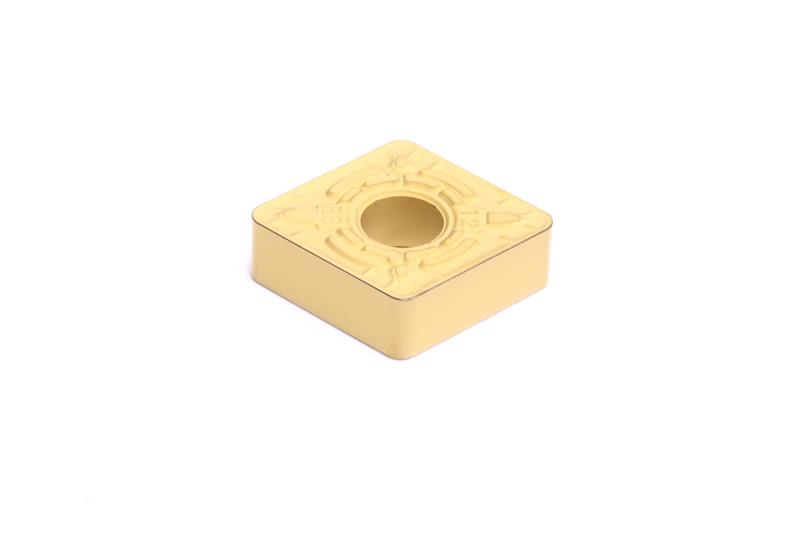

CNMG432 EGE AC810P Grade, Carbide Turning Insert

  • Item Code: CNMG432EGE AC810P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish CVD
Grade AC810P
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.5000 Inch
Insert Style CNMG
Corner Radius 0.0313 Inch
Product Name Turning Insert
Thickness 0.1875 Inch
Brand Sumitomo
Chipbreaker Type EGE
Included Angle 80
Shape Diamond
Material Solid Carbide
Rake Angle 3 Degree
Insert Size 432
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
