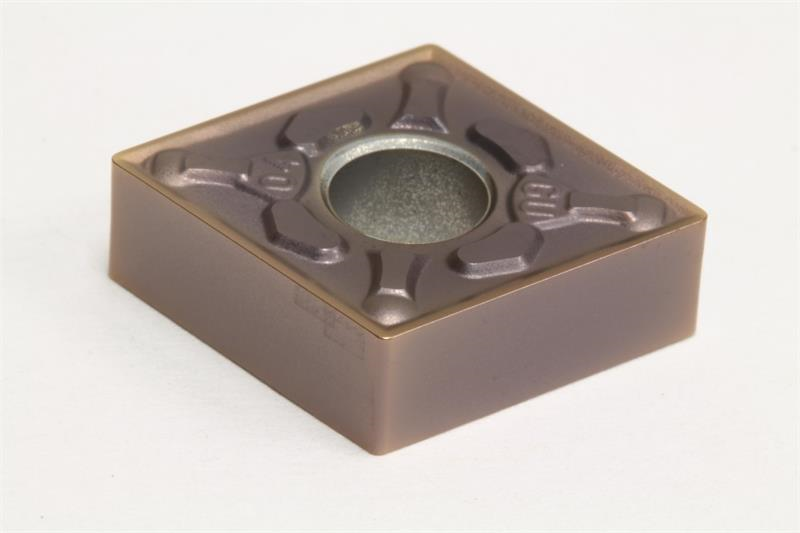

CNMG432 EGU AC530U Grade, Carbide Turning Insert

  • Item Code: CNMG432EGU AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Inscribed Circle 0.5000 Inch
Insert Style CNMG
Corner Radius 0.0313 Inch
Grade AC530U
Product Name Turning Insert
Rake Angle 7 Degree
Thickness 0.1875 Inch
Shape Diamond
Chipbreaker Type EGU
Insert Size 432
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Brand Sumitomo
Included Angle 80
Material Solid Carbide
