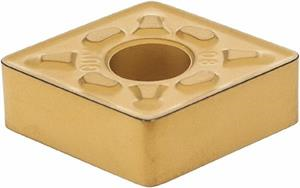

CNMG432 EGUW AC820P Grade, Carbide Turning Insert

  • Item Code: CNMG432EGUW AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type EGUW
Coating/Finish CVD
Included Angle 80
Number of Edges 4
Grade AC820P
Inscribed Circle 0.5000 Inch
Insert Style CNMG
Insert Type Negative
Shape Diamond
Thickness 0.1875 Inch
Corner Radius 0.0313 Inch
Material Solid Carbide
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Brand Sumitomo
Product Name Turning Insert
Rake Angle 0 Degree
