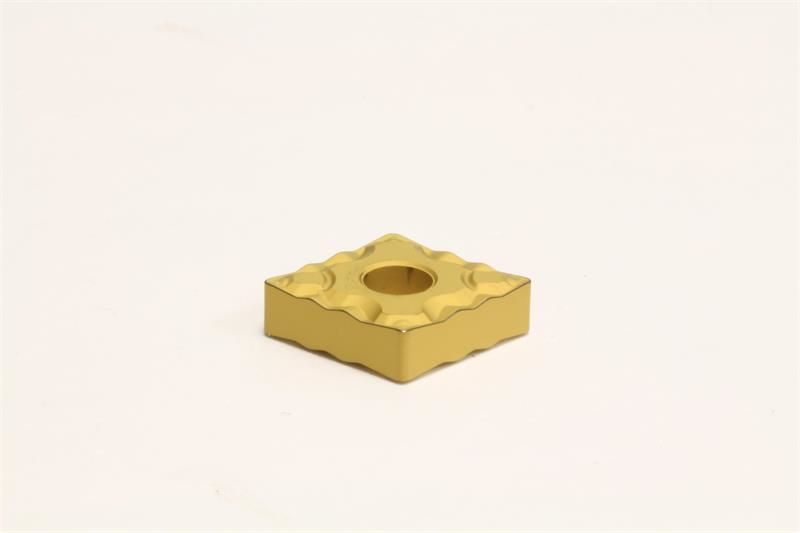

CNMG432 ELU AC700G Grade Carbide Turning Insert

  • Item Code: CNMG432ELU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish Coated
Inscribed Circle 0.5000 Inch
Insert Style CNMG
Insert Type Negative
Brand Sumitomo
Included Angle 80
Product Name Turning Insert
Thickness 0.1875 Inch
Grade AC700G
Chipbreaker Type ELU
Material Solid Carbide
Rake Angle 10 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Corner Radius 0.0313 Inch
Number of Edges 4
Shape Diamond
