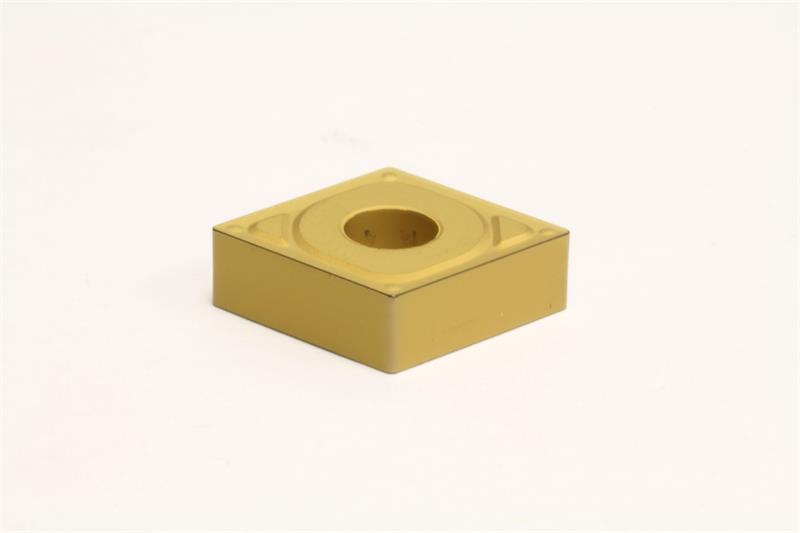

CNMG432 ENK AC820P Grade, Carbide Turning Insert

  • Item Code: CNMG432ENK AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.5000 Inch
Insert Style CNMG
Insert Type Negative
Brand Sumitomo
Grade AC820P
Shape Diamond
Corner Radius 0.0313 Inch
Material Solid Carbide
Product Name Turning Insert
Thickness 0.1875 Inch
Chipbreaker Type ENK
Number of Edges 4
Rake Angle 10 Degree
Coating/Finish CVD
Included Angle 80
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
