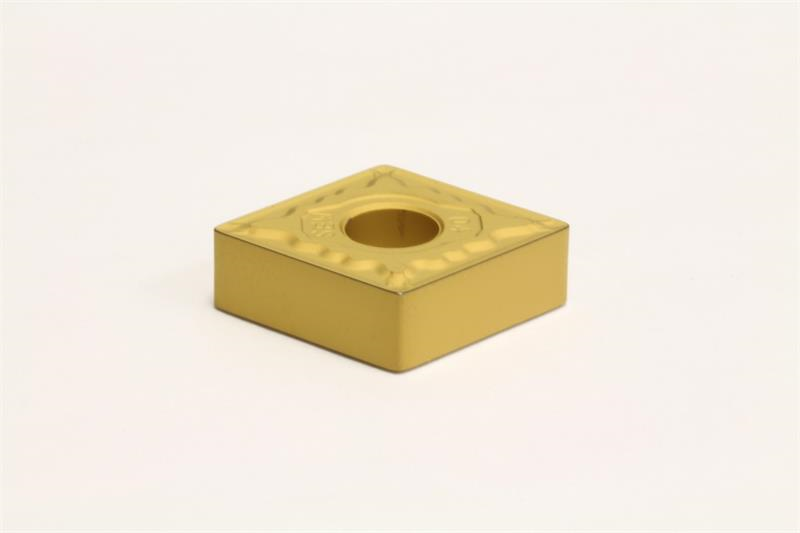

CNMG432 ESEW AC820P Grade, Carbide Turning Insert

  • Item Code: CNMG432ESEW AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Material Solid Carbide
Coating/Finish CVD
Number of Edges 4
Shape Diamond
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Rake Angle 5 Degree
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Corner Radius 0.0313 Inch
Brand Sumitomo
Chipbreaker Type ESEW
Product Name Turning Insert
Inscribed Circle 0.5000 Inch
Insert Type Negative
Thickness 0.1875 Inch
Grade AC820P
Included Angle 80
Insert Style CNMG
