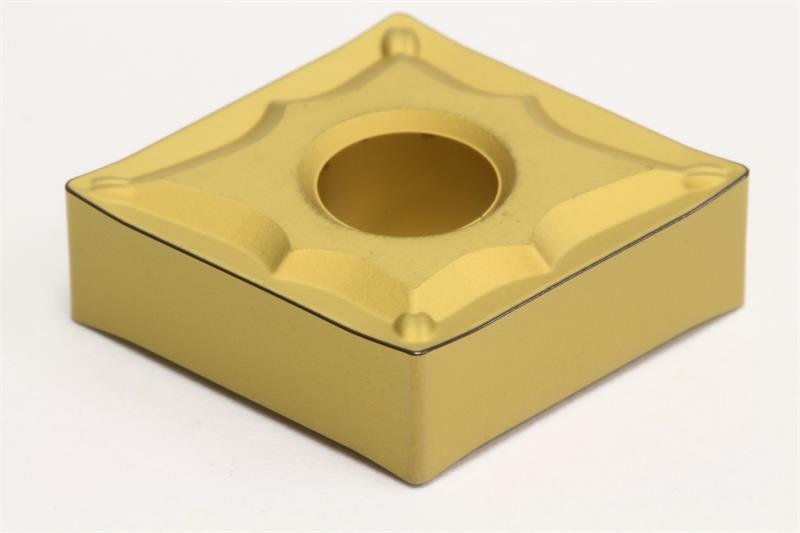

CNMG432 ESU AC610M Grade, Carbide Turning Insert

  • Item Code: CNMG432ESU AC610M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Material Solid Carbide
Chipbreaker Type ESU
Brand Sumitomo
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Rake Angle 13 Degree
Insert Style CNMG
Product Name Turning Insert
Insert Type Negative
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Included Angle 80
Inscribed Circle 0.5000 Inch
Thickness 0.1875 Inch
Corner Radius 0.0313 Inch
Grade AC610M
Number of Edges 4
Shape Diamond
