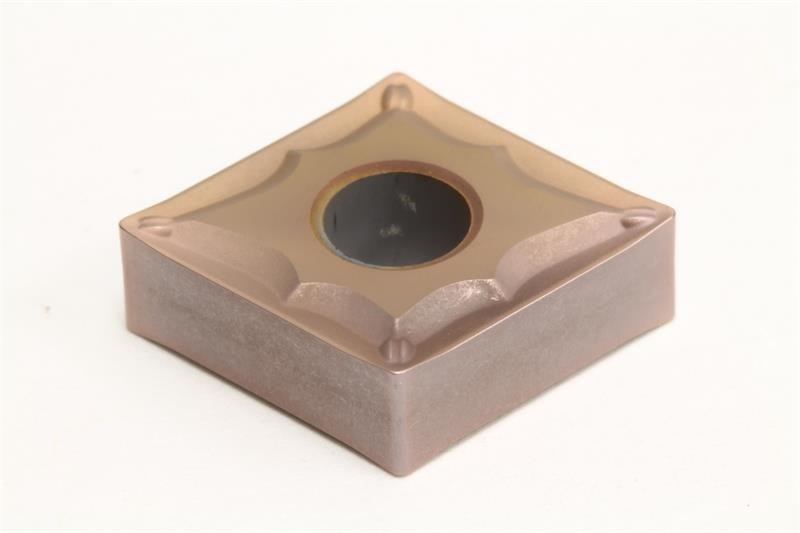

CNMG432 ESU T3000Z Grade, Cermet Turning Insert

  • Item Code: CNMG432ESU T3000Z
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.

Tech Specs

Back To Top
Shape Diamond
Thickness 0.1875 Inch
Corner Radius 0.0313 Inch
Coating/Finish PVD
Inscribed Circle 0.5000 Inch
Insert Style CNMG
Insert Type Negative
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Number of Edges 4
Brand Sumitomo
Chipbreaker Type ESU
Included Angle 80
Product Name Turning Insert
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Grade T3000Z
Rake Angle 13 Degree
