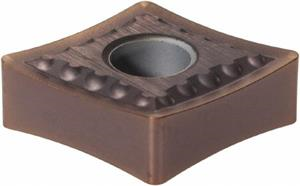

CNMG432 EUP AC520U Grade, Cermet Turning Insert

  • Item Code: CNMG432EUP AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Shape Diamond
Material Solid Carbide
Rake Angle 10 Degree
Brand Sumitomo
Chipbreaker Type EUP
Insert Size 432
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Corner Radius 0.0313 Inch
Inscribed Circle 0.5000 Inch
Thickness 0.1875 Inch
Grade AC520U
Insert Style CNMG
Number of Edges 4
Product Name Turning Insert
Included Angle 80
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
