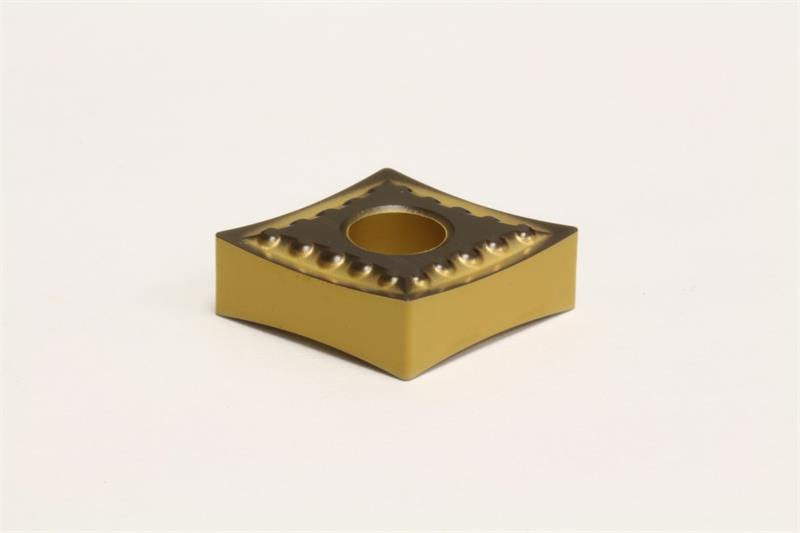

CNMG432 EUP AC610M Grade, Cermet Turning Insert

  • Item Code: CNMG432EUP AC610M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Product Name Turning Insert
Thickness 0.1875 Inch
Corner Radius 0.0313 Inch
Grade AC610M
Shape Diamond
Inscribed Circle 0.5000 Inch
Insert Style CNMG
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Number of Edges 4
Brand Sumitomo
Chipbreaker Type EUP
Material Solid Carbide
Rake Angle 10 Degree
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Insert Size 432
Included Angle 80
