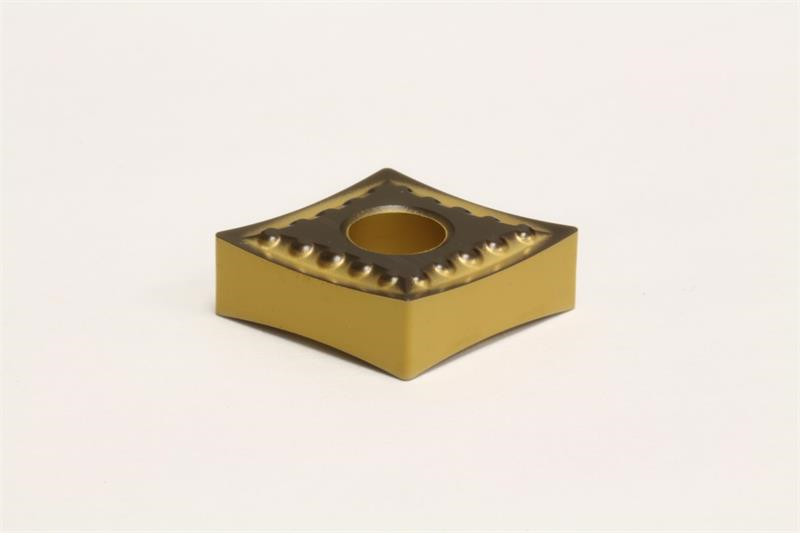

CNMG432 EUP AC630M Grade, Cermet Turning Insert

  • Item Code: CNMG432EUP AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Brand Sumitomo
Included Angle 80
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type EUP
Inscribed Circle 0.5000 Inch
Insert Style CNMG
Rake Angle 10 Degree
Shape Diamond
Corner Radius 0.0313 Inch
Number of Edges 4
Product Name Turning Insert
Insert Size 432
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Coating/Finish CVD
Grade AC630M
Thickness 0.1875 Inch
Material Solid Carbide
