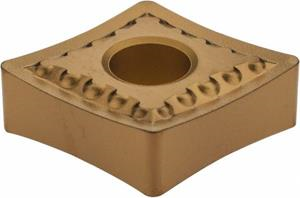

CNMG432 EUP AC830P Grade, Cermet Turning Insert

  • Item Code: CNMG432EUP AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 432
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.5000 Inch
Insert Type Negative
Shape Diamond
Brand Sumitomo
Chipbreaker Type EUP
Insert Style CNMG
Product Name Turning Insert
Material Solid Carbide
Rake Angle 10 Degree
Corner Radius 0.0313 Inch
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Coating/Finish CVD
Grade AC830P
Included Angle 80
Thickness 0.1875 Inch
